DFA100N75

N-Channel MOSFET

DFA100N75 Features

* Low RDS(on) (0.013Ω )@VGS=10V Low Gate Charge (Typical 90nC) Low Crss (Typical 215pF) Improved dv/dt Capability 100% Avalanche Tested Maximum Junction Temperature Range 2.Drain BVDSS =75V 1.Gate 3.Source RDS(ON) = 0.013 ohm ID = 97A General Description This N

DFA100N75 General Description

This N-channel enhancement mode field-effect power transistor using D&I semiconductor’s advanced planar stripe, DMOS technology intended for battery operated systems like a DC-DC converter motor control, ups, etc., Also, especially designed to minimize rds(on) , low gate charge and high rugged avala.

DFA100N75 Datasheet (748.44 KB)

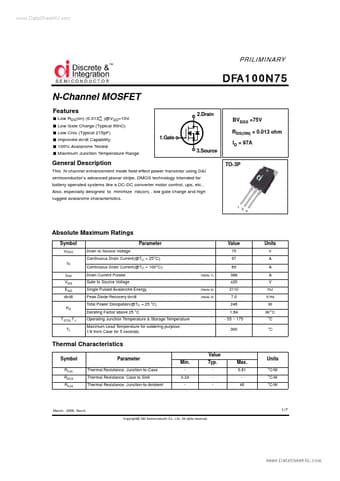

Preview of DFA100N75 PDF

Datasheet Details

Part number:

DFA100N75

Manufacturer:

DnI

File Size:

748.44 KB

Description:

N-channel mosfet.
