DS120020G2 - SiC Schottky Barrier Diode

📥 Download Datasheet

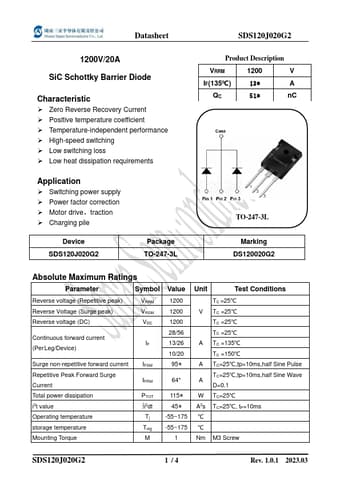

Preview of DS120020G2 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number DS120020G2
Manufacturer Sanan
File Size 318.21 KB
Description SiC Schottky Barrier Diode
Datasheet download datasheet DS120020G2-Sanan.pdf

DS120020G2 Product details

Description

VRRM 1200 V IF(135℃) 13 A QC 51 nC TO-247-3L Marking DS120020G2 Absolute Maximum Ratings Parameter Symbol Value Unit Test Conditions Reverse voltage (Repetitive peak) Reverse Voltage (Surge peak) Reverse voltage (DC) Continuous forward current (Per Leg/Device) Surge non-repetitive forward current Repetitive Peak Forward Surge Current Total power dissipation i2t value Operating temperature storage temperature Mounting Torque VRRM VRSM VDC IF IFSM IFRM PTOT ∫i2dt Tj Tstg
