DS120040H2

SiC Schottky Barrier Diode

DS120040H2 General Description

VRRM 1200 V IF(135℃) 40 A QC 198 nC TO-247-2L Device SDS120J040H2 Package TO-247-2L Marking DS120040H2 Absolute Maximum Ratings Parameter Symbol Value Unit Test Conditions Reverse voltage (Repetitive peak) Reverse Voltage (Surge peak) Reverse voltage (DC) Continuous forward current.

DS120040H2 Datasheet (328.02 KB)

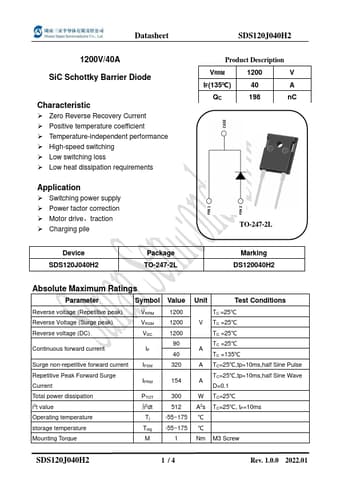

Preview of DS120040H2 PDF

Datasheet Details

Part number:

DS120040H2

Manufacturer:

Sanan

File Size:

328.02 KB

Description:

Sic schottky barrier diode.
Datasheet 1200V/40A SiC Schottky Barrier Diode Characteristic

* Zero Reverse Recovery Current

* Positive temperature coefficient
<.
