SDS065J002D3 Datasheet - Sanan

SDS065J002D3 - SiC Schottky Barrier Diode

VRRM 650 V IF(135℃) 5 A QC 6.8 nC TO-252-2L PIN 1 PIN 2 CASE Marking DS065002D3 Absolute Maximum Ratings Parameter Symbol Value Unit Test Conditions Reverse voltage (Repetitive peak) VRRM 650 TC =25℃ Reverse Voltage (Surge peak) VRSM 650 V TC =25℃ Reverse voltage (DC) VDC

Datasheet SDS065J002D3 650V/2A SiC Schottky Barrier Diode Characteristic Zero Reverse Recovery Current Positive temperature coefficient Temperature-independent performance High-speed switching Low switching loss Low heat dissipation requirements Application Switching power supply Power factor correction Motor drive,traction Charging pile Device SDS065J002D3 Package TO-252-2L Product Descript

SDS065J002D3-Sanan.pdf

Preview of SDS065J002D3 PDF

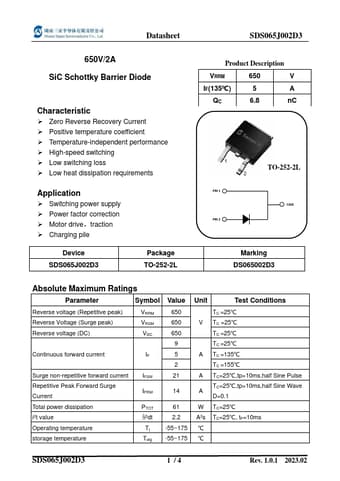

SDS065J002D3 Datasheet Preview Page 2 SDS065J002D3 Datasheet Preview Page 3

Datasheet Details

Part number:

SDS065J002D3

Manufacturer:

Sanan

File Size:

294.85 KB

Description:

Sic schottky barrier diode.
