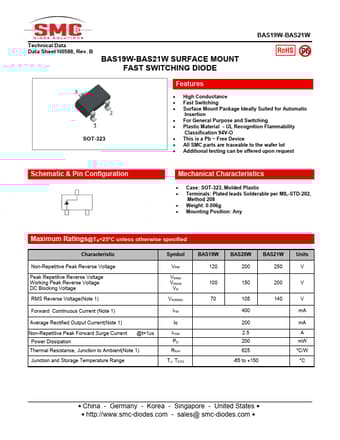

BAS19W - SURFACE MOUNT FAST SWITCHING DIODE

Sangdest Microelectronics

Datasheet Details

Part number	BAS19W
Manufacturer	SangdeSTMicroelectronics
File Size	280.35 KB
Description	SURFACE MOUNT FAST SWITCHING DIODE
Datasheet	BAS19W-SangdestMicroelectronics.pdf

High Conductance.
Fast Switching.
Surface Mount Package Ideally Suited for Automatic Insertion.
For General Purpose and Switching.
Plastic Material.
UL Recognition Flammability Classification 94V-O.
This is a Pb.
Free Device.
All SMC parts are traceable to the wafer lot.
Additional testing can be offered upon request Schematic & Pin Configuration Mechanical Characteristics.
Case: SOT-323, Molded Plastic.
Terminals: Plated lead.
