BAS21, BAS19, SWITCHING DIODE

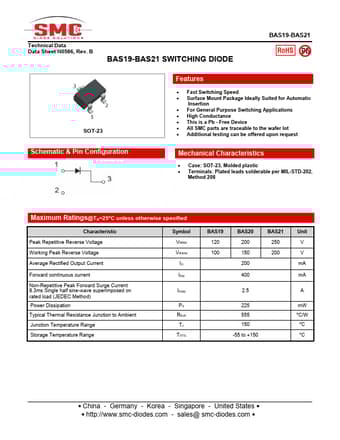

Technical Data Data Sheet N0586, Rev.B BAS19-BAS21 SWITCHING DIODE BAS19-BAS21 SOT-23 Schematic & Pin Configuration .

BAS19-SangdestMicroelectronics.pdf

BAS21 Datasheet Preview — This datasheet PDF includes multiple part numbers: BAS21, BAS19. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

BAS21, BAS19

Manufacturer:

SangdeSTMicroelectronics ↗

File Size:

400.71 KB

Description:

SWITCHING DIODE

Note:

This datasheet PDF includes multiple part numbers: BAS21, BAS19.
Please refer to the document for exact specifications by model.

Features

* Fast Switching Speed
* Surface Mount Package Ideally Suited for Automatic Insertion

Applications

* High Conductance
* This is a Pb - Free Device
* All SMC parts are traceable to the wafer lot
* Additional testing can be offered upon request Mechanical Characteristics
* Case: SOT-23, Molded plastic
* Terminals: Plated leads solderable per MIL-STD-202, Method 208 Maximum
