DB154, DB151 - SINGLE PHASE 1.5AMP GLASS PASSIVATED BRIDGERECTIFIER

Name: DB154
SKU: DB154-1211169

Sangdest Microelectronics

The DB154 by Sangdest Microelectronics is a SINGLE PHASE 1.5AMP GLASS PASSIVATED BRIDGERECTIFIER. Below is the official datasheet preview.

📥 Download Datasheet

DB154 SINGLE PHASE 1.5AMP GLASS PASSIVATED BRIDGERECTIFIER by Sangdest Microelectronics - Datasheet Preview — Official preview page of the **DB154** SINGLE PHASE 1.5AMP GLASS PASSIVATED BRIDGERECTIFIER datasheet (Sangdest Microelectronics).

Datasheet Details

Part number	DB154, DB151
Manufacturer	SangdeSTMicroelectronics
File Size	353.41 KB
Description	SINGLE PHASE 1.5AMP GLASS PASSIVATED BRIDGERECTIFIER
Datasheet	DB151-SangdestMicroelectronics.pdf
Note	This datasheet PDF includes multiple part numbers: DB154, DB151. Please refer to the document for exact specifications by model.

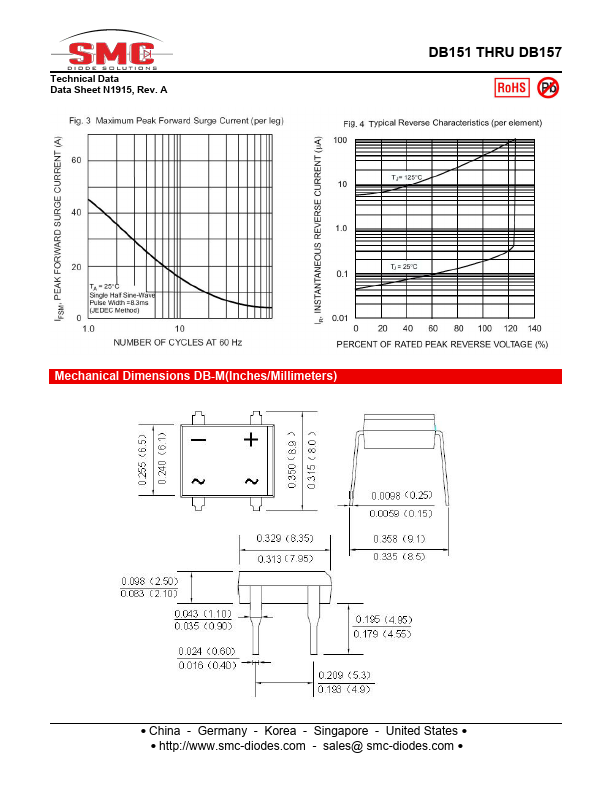

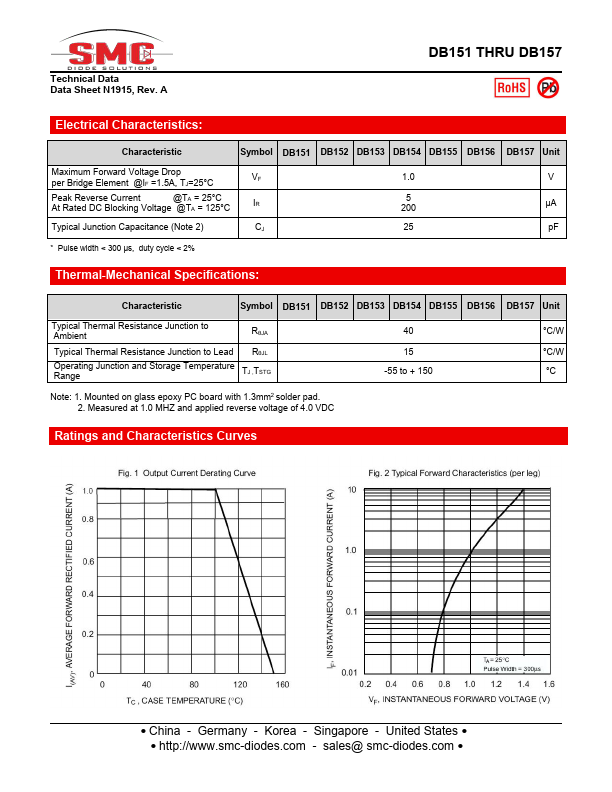

Additional preview pages of the DB154 datasheet.

DB154 Product details

Features

Glass passivated die construction.
Low forward voltage drop.
High current capability.
High surge current capability.
Plastic material-UL flammability 94V-0.
This is a Pb.
Free Device.
All SMC parts are traceable to the wafer lot.
Additional testing can be offered upon request Circuit Diagram Mechanical Data.
Case: DB-M, Molded plastic.
Terminals: Plated leads solderable per MIL-STD-202, Method 208.
Polarity: as marked on case.
