DB151 - SINGLE PHASE 1.5AMP GLASS PASSIVATED BRIDGERECTIFIER

Name: DB151
SKU: DB151-1211166

Sangdest Microelectronics

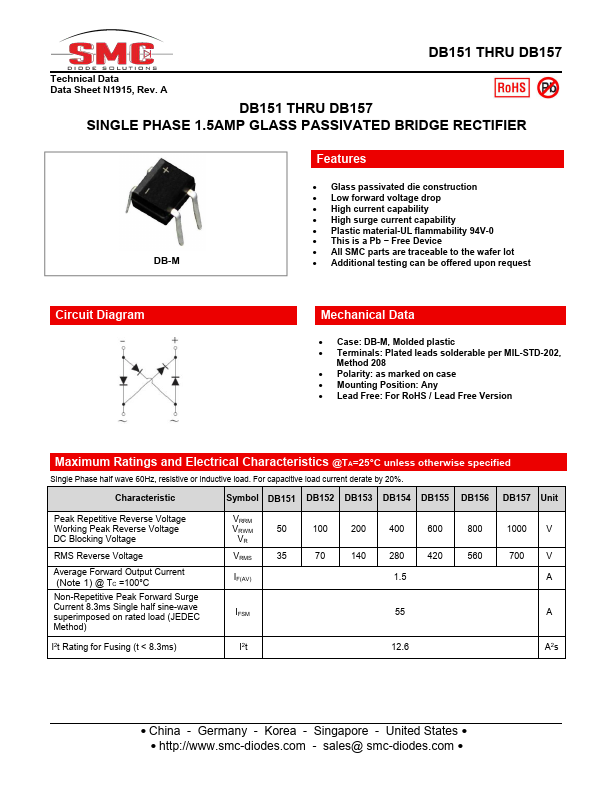

The DB151 by Sangdest Microelectronics is a SINGLE PHASE 1.5AMP GLASS PASSIVATED BRIDGERECTIFIER. Below is the official datasheet preview.

📥 Download Datasheet

DB151 SINGLE PHASE 1.5AMP GLASS PASSIVATED BRIDGERECTIFIER by Sangdest Microelectronics - Datasheet Preview — Official preview page of the **DB151** SINGLE PHASE 1.5AMP GLASS PASSIVATED BRIDGERECTIFIER datasheet (Sangdest Microelectronics).

Datasheet Details

Part number	DB151
Manufacturer	SangdeSTMicroelectronics
File Size	353.41 KB
Description	SINGLE PHASE 1.5AMP GLASS PASSIVATED BRIDGERECTIFIER
Datasheet	DB151-SangdestMicroelectronics.pdf

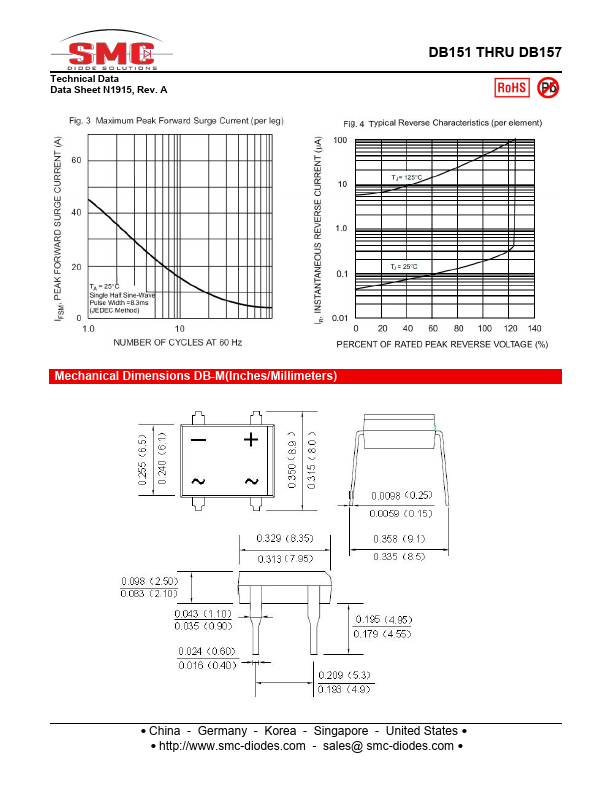

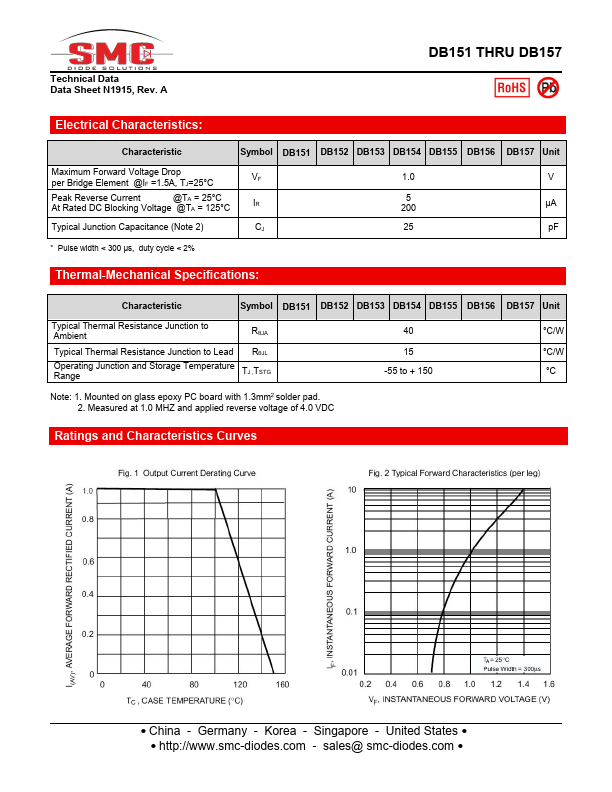

Additional preview pages of the DB151 datasheet.

DB151 Product details

Features

Glass passivated die construction.
Low forward voltage drop.
High current capability.
High surge current capability.
Plastic material-UL flammability 94V-0.
This is a Pb.
Free Device.
All SMC parts are traceable to the wafer lot.
Additional testing can be offered upon request Circuit Diagram Mechanical Data.
Case: DB-M, Molded plastic.
Terminals: Plated leads solderable per MIL-STD-202, Method 208.
Polarity: as marked on case.
