DSR1G, DSR1A - GENERAL PURPOSE SILICON RECTIFIER

Sangdest Microelectronics

DSR1G Description

SANGDEST MICROELECTRONICS Technical Data Data Sheet N1650, Rev.- DSR1A-DSR1M Green Products DSR1A-DSR1M SUFACE MOUNT GENERAL PURPOSE SILICON RECTIF.

DSR1G Features

* Glass passivated device

DSR1G Applications

* Low reverse leakage
* Metallurgically bonded construction
* High temperature soldering guaranteed: 250 C/10 seconds,0.375”(9.5mm) lead length, 5 lbs. (2.3kg) tension
* This is a Pb
* Free Device
* All SMC parts are traceable to the wafer lot

📥 Download Datasheet

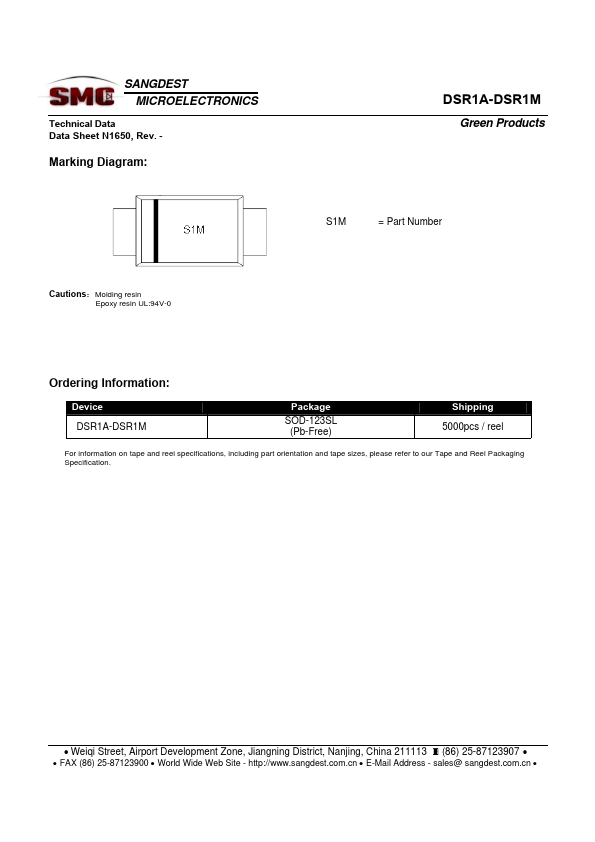

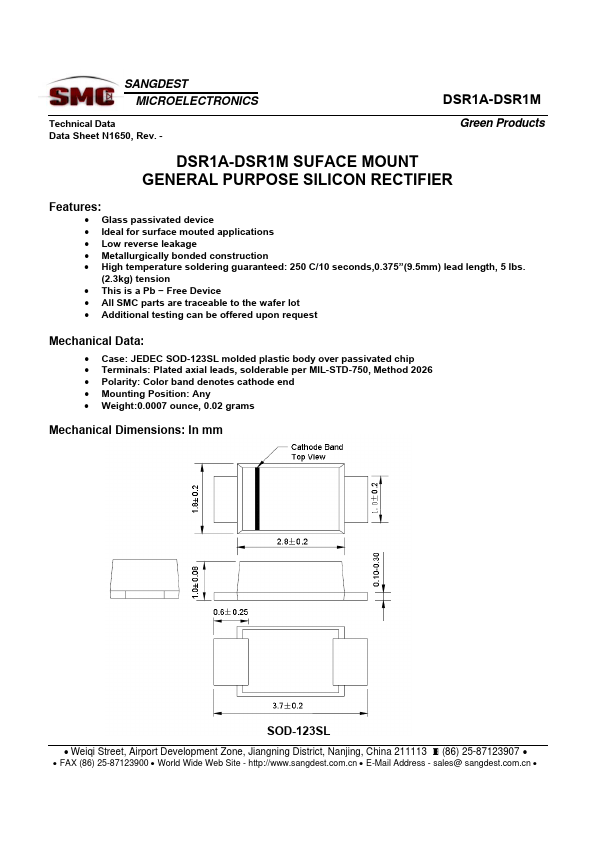

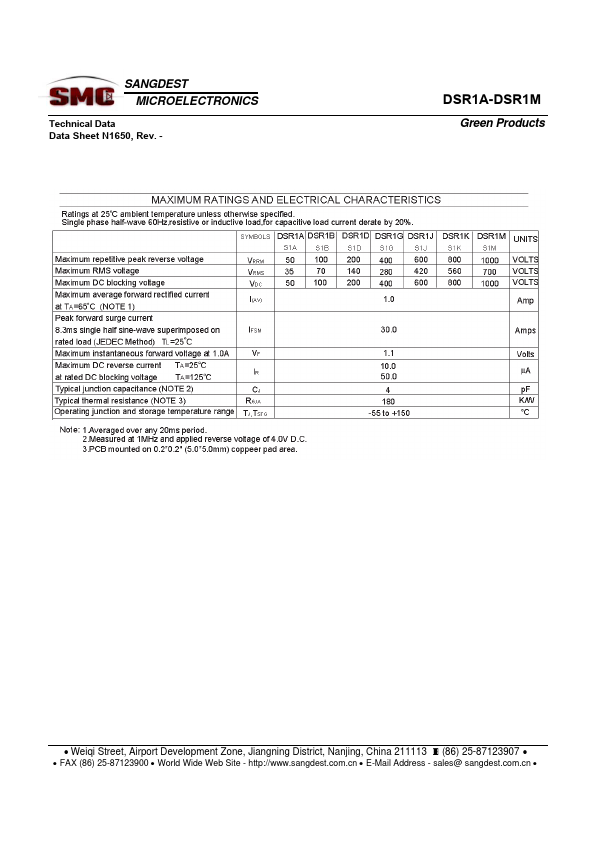

DSR1G Datasheet Preview — This datasheet PDF includes multiple part numbers: DSR1G, DSR1A. Please refer to the document for exact specifications by model.

Datasheet Details

Part number: DSR1G, DSR1A
Manufacturer: SangdeSTMicroelectronics ↗
File Size: 152.49 KB
Datasheet: DSR1A-SangdestMicroelectronics.pdf
Description: GENERAL PURPOSE SILICON RECTIFIER
Note: This datasheet PDF includes multiple part numbers: DSR1G, DSR1A.
Please refer to the document for exact specifications by model.
