GBPC2504, GBPC25005, Single-Phase 25.0A Glass Passivated Bridge Rectifier

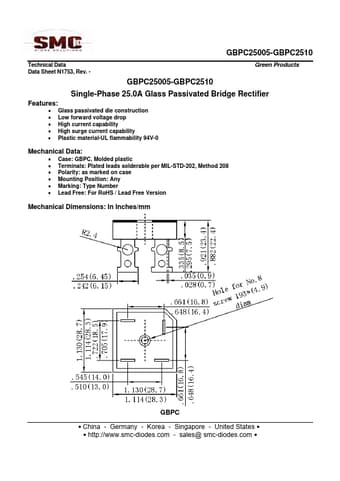

GBPC25005-GBPC2510 Technical Data Data Sheet N1753, Rev.- GBPC25005-GBPC2510 Green Products Single-Phase 25.0A Glass Passivated Bridge Rectifier .

GBPC25005-SangdestMicroelectronics.pdf

GBPC2504 Datasheet Preview — This datasheet PDF includes multiple part numbers: GBPC2504, GBPC25005. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

GBPC2504, GBPC25005

Manufacturer:

SangdeSTMicroelectronics ↗

File Size:

115.81 KB

Description:

Single-Phase 25.0A Glass Passivated Bridge Rectifier

Note:

This datasheet PDF includes multiple part numbers: GBPC2504, GBPC25005.
Please refer to the document for exact specifications by model.

Features

* Glass passivated die construction
* Low forward voltage drop
* High current capability
* High surge current capability
* Plastic material-UL flammability 94V-0 Mechanical Data:
* Case: GBPC, Molded plastic
* Terminals: Plated leads solderab
