GBPC2510, GBPC25005 Single-Phase 25.0A Glass Passivated Bridge Rectifier

GBPC2510 Description

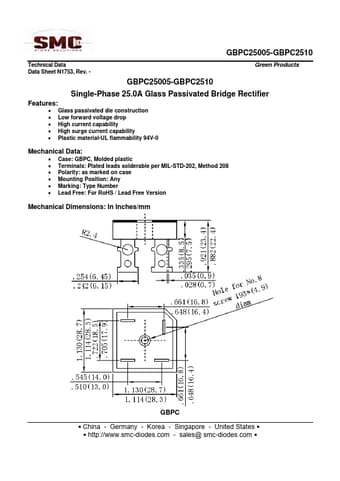

GBPC25005-GBPC2510 Technical Data Data Sheet N1753, Rev.- GBPC25005-GBPC2510 Green Products Single-Phase 25.0A Glass Passivated Bridge Rectifier .

GBPC2510 Features

* Glass passivated die construction
* Low forward voltage drop
* High current capability
* High surge current capability
* Plastic material-UL flammability 94V-0 Mechanical Data:
* Case: GBPC, Molded plastic
* Terminals: Plated leads solderab

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: GBPC2510, GBPC25005. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
GBPC2510, GBPC25005
Manufacturer
SangdeSTMicroelectronics ↗
File Size
115.81 KB
Datasheet
GBPC25005-SangdestMicroelectronics.pdf
Description
Single-Phase 25.0A Glass Passivated Bridge Rectifier
Note
This datasheet PDF includes multiple part numbers: GBPC2510, GBPC25005.
Please refer to the document for exact specifications by model.
