MBR1060CTL - SCHOTTKY RECTIFIER

MBR1060CTL Description

MBR1060CTL Technical Data Data Sheet N0617, Rev.A MBR1060CTL SCHOTTKY RECTIFIER .

MBR1060CTL Features

* LKLLKJHYJ, TO-220AB
* 125C TJ operation
* Center tap configuration
* Low forward voltage drop
* High purity, high temperature epoxy encapsulation for enhanced
* mechanical strength and moisture resistance
* High frequency operation
* Guard ring for enhanced ruggedness

MBR1060CTL Applications

* Switching power supply
* Converters
* Free-Wheeling diodes
* Reverse battery protection Maximum Ratings: Characteristics Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage Average Rectified Forward Current Peak One Cycle Non-Repetitive Surge Current(

📥 Download Datasheet

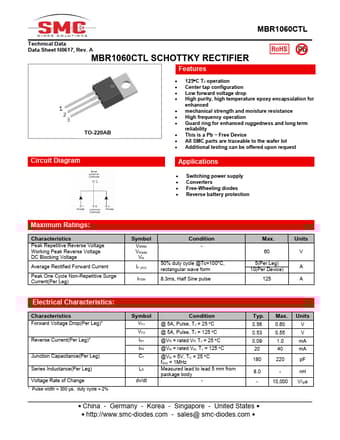

Preview of MBR1060CTL PDF
datasheet Preview Page 2 datasheet Preview Page 3
