S5BC

The S5BC is SURFACE MOUNT GLASS PASSIVATED RECTIFIER designed by Sangdest Microelectronics.

Product Overview

Sangdest Microelectronics

📥 Download Datasheet

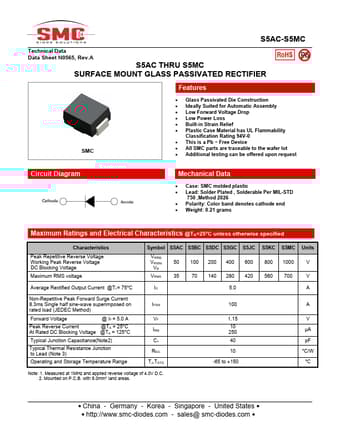

S5BC SURFACE MOUNT GLASS PASSIVATED RECTIFIER by Sangdest Microelectronics - Datasheet Preview — Datasheet preview – S5BC

Datasheet Details

Part number	S5BC
Manufacturer	SangdeSTMicroelectronics
File Size	287.53 KB
Description	SURFACE MOUNT GLASS PASSIVATED RECTIFIER
Datasheet	S5BC-SangdestMicroelectronics.pdf
Additional preview pages of the S5BC datasheet.

Product details

Features

SMC.
Glass Passivated Die Construction.
Ideally Suited for Automatic Assembly.
Low Forward Voltage Drop.
Low Power Loss.
Built-in Strain Relief.
Plastic Case Material has UL Flammability Classification Rating 94V-0.
This is a Pb.
Free Device.
All SMC parts are traceable to the wafer lot.
Additional testing can be offered upon request Circuit Diagram Mechanical Data.
Case: SMC molded plastic.
Lead: Solder Plated , Solderable Per.
