C4512 2SC4512

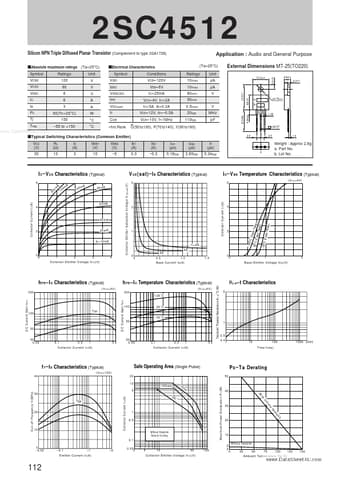

2SC4512 Silicon NPN Triple Diffused Planar Transistor (Complement to type 2SA1726) sAbsolute maximum ratings (Ta=25°C) Symbol VCBO VCEO VEBO IC IB PC Tj Tstg Ratings 120 80 6 6 3 50(Tc=25°C) 150 55 to +150 Unit V V V A A W °C °C Application : Audio and General Purpose (Ta=25°C) Ratings 10max 10max 80min 50min 0.5max 20typ 110typ V MHz pF 12.0min sElectrical Characteristics Symbol ICBO IEBO V(BR)CEO hFE VCE(sat) fT COB ∗hFE Rank Conditions VCB=120V VEB=6V IC=25mA VCE=4V, IC=2A IC=5A, I.
