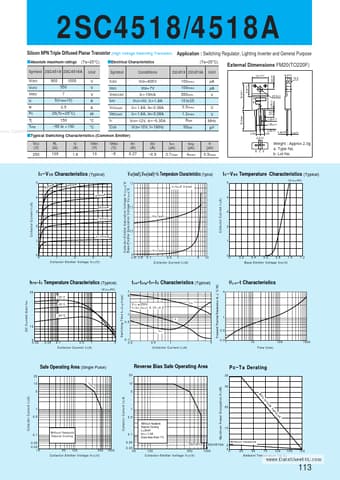

2SC4518/4518A Silicon NPN Triple Diffused Planar Transistor (High Voltage Switchihg Transistor) Application : Switching Regulator, Lighting Inverter and General Purpose sAbsolute maximum ratings (Ta=25°C) Symbol 2SC4518 2SC4518A VCBO VCEO VEBO IC IB PC Tj Tstg 900 550 7 5(Pulse10) 2.5 35(Tc=25°C) 150 55 to +150 1000 Unit V V V A A W °C °C sElectrical Characteristics Symbol ICBO IEBO V(BR)CEO hFE VCE(sat) VBE(sat) fT COB Conditions VCB=800V VEB=7V IC=10mA VCE=4V, IC=1.8A IC=1.8A, IB=0.3.
