STR-A6252M Universal-Input 20 W 67 kHz Flyback Switching Regulators

Source/OCP terminal FM/Soft start terminal Ground terminal 4 FB /CC/OLP FB/CC/OLP terminal 5 VCC Power supply terminal 7 D Drain terminals 8 Functions MOSFET Source/Overcurrent protection Capacitor connection terminal for frequency jitter and soft start. Ground Input of constant voltage co.

STR-A6252M Features

* 67 kHz PWM with ±5% frequency jittering for EMI noise filtering and cost reduction Rugged 650 V avalanche-rated MOSFET:

* Simplified surge absorption

* No VDSS derating required Low RDS(on) : 2.8 Ω maximum Auto-burst mode for stand-by operation or light loads; less transformer audibl

STR-A6252M_SankenElectric.pdf

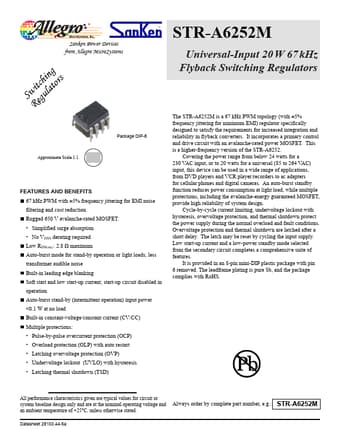

STR-A6252M Datasheet Preview — Preview of STR-A6252M PDF
