STRA6059H, STR-A6000H - STR-A6000H Series PWM Off-Line Switching Regulator ICs

Sanken Electric

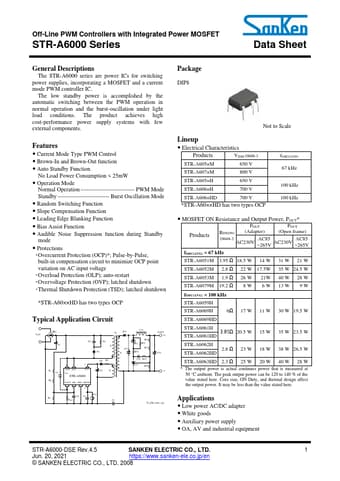

STRA6059H Datasheet Preview — This datasheet PDF includes multiple part numbers: STRA6059H, STR-A6000H. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	STRA6059H, STR-A6000H
Manufacturer	Sanken ↗ Electric
File Size	611.79 KB
Description	STR-A6000H Series PWM Off-Line Switching Regulator ICs
Datasheet	STR-A6000H_SankenElectric.pdf
Note	This datasheet PDF includes multiple part numbers: STRA6059H, STR-A6000H. Please refer to the document for exact specifications by model.

STRA6059H Product details

Description

The STR-A6059H, STR-A6061H, STR-A6062H, and STR-A6069H are power ICs for switching power supplies, incorporating a power MOSFET and a current mode PWM controller IC in one package.

Features

Current mode PWM control.
Brown-In and Brown-Out function: auto-restart, prevents excess input current and heat rise at low input voltage.
Auto Standby function: improves efficiency by Burst mode operation in light load ▫ Normal load operation: PWM mode ▫ Light load operation: Burst mode.
No load power consumption < 25 mW.
Operating frequency, fOSC(AVG)(typ) = 100 kHz.
Random Switching function: reduces EMI noise, and simplifies EMI filters.
Slope Compensation.
