STRA6169, STR-A6169 Datasheet - Allegro Microsystems

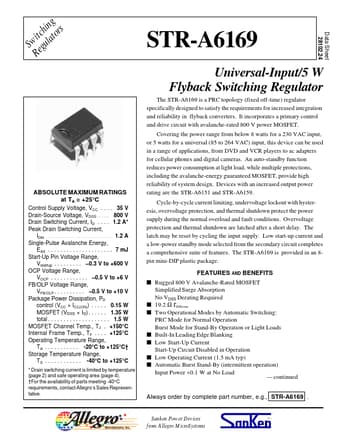

STRA6169 Universal-Input/5W Flyback Switching Regulator

and applications information is provided in Application Note 28102.20, Series STRA6100 Flyback Switching Regulators. The products described herein are manufactured in Japan by Sanken Electric Co., Ltd. for sale by Allegro MicroSystems, Inc. Sanken and Allegro reserve the right to make, from time to.
Data Sheet 28102.24 SwRitecghuinlagtors ABSOLUTE MAXIMUM RATINGS at TA = +25°C Control Supply Voltage, VCC . . . . 35 V Drain-Source Voltage, VDSS . . . . . . 800 V Drain Switching Current, ID . . . . 1.2 A Peak Drain Switching Current, IDM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.2 A Single-Pulse Avalanche Energy, EAS . . . . . . . . . . . . . . . . . . . . . 7 mJ Start-Up Pin Voltage Range, Vstartup . . . . . . . . . 0.3 V to +600 V OCP Voltage Range, .

STRA6169 Features

* Rugged 800 V Avalanche-Rated MOSFET Simplified Surge Absorption No VDSS Derating Required

* 19.2 Ω rDS(on)

* Two Operational Modes by Automatic Switching: PRC Mode for Normal Operation Burst Mode for Stand-By Operation or Light Loads

* Built-In Leading Edge Blanking

* Low
