STR-A6169 - Universal-Input/5W Flyback Switching Regulator

STR-A6169 Description

Data Sheet 28102.24 SwRitecghuinlagtors ABSOLUTE MAXIMUM RATINGS at TA = +25°C Control Supply Voltage, VCC ....35 V Drain-Source Voltage, VDSS and applications information is provided in Application Note 28102.

STR-A6169 Features

* Rugged 800 V Avalanche-Rated MOSFET Simplified Surge Absorption No VDSS Derating Required
* 19.2 Ω rDS(on)
* Two Operational Modes by Automatic Switching: PRC Mode for Normal Operation Burst Mode for Stand-By Operation or Light Loads
* Built-In Leading Edge Blanking
* Low

STR-A6169 Applications

* from DVD and VCR players to ac adapters for cellular phones and digital cameras. An auto-standby function reduces power consumption at light load, while multiple protections, including the avalanche-energy guaranteed MOSFET, provide high reliability of system design. Devices with an increased outpu

📥 Download Datasheet

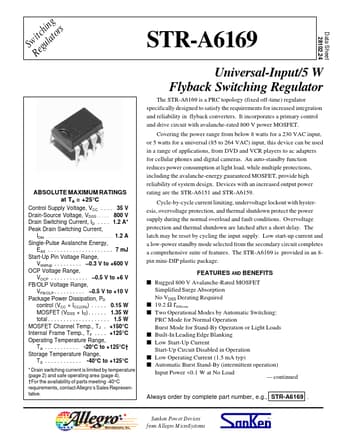

Preview of STR-A6169 PDF
