STR-A6100

Off-Line PRC Controllers

STR-A6100 Features

* helps to realize low component counts, and high performance-to-cost power supply. Package DIP8 Not to Scale S/OCP 1 VCC 2 GND FB/OLP 4 8D 7D 6 5 ST Features

* Current Mode Type Pulse Ratio Control

* Auto Standby Function Normal Operation

STR-A6100 General Description

The STR-A6100 series are power ICs for switching power supplies, incorporating a MOSFET and a current mode PRC controller IC. PRC (Pulse Ratio Control) controls on-time with fixed off-time. The IC includes a startup circuit and a standby function to achieve the low standby power. The rich set of pr.

STR-A6100 Datasheet (853.77 KB)

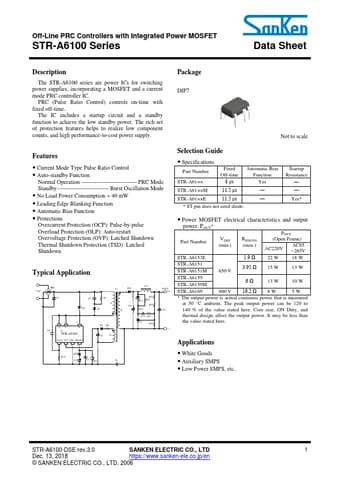

Preview of STR-A6100 PDF

Datasheet Details

Part number:

STR-A6100

Manufacturer:

Sanken ↗

File Size:

853.77 KB

Description:

Off-line prc controllers.
