STR-A6159M - Off-Line PRC Controllers

Product Overview

Sanken

Part number	STR-A6159M
Manufacturer	Sanken
File Size	845.07 KB
Description	Off-Line PRC Controllers
Datasheet	STR-A6159M Datasheet
Note	This datasheet PDF includes multiple part numbers: STR-A6159M, STR-A6131M. Please refer to the document for exact specifications by model.

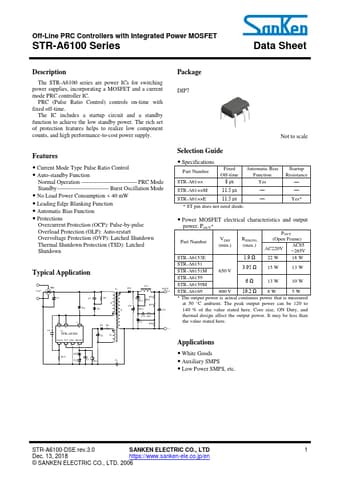

Additional preview pages of the STR-A6159M datasheet.

The STR-A6100 series are power ICs for switching power supplies, incorporating a MOSFET and a current mode PRC controller IC.

helps to realize low component counts, and high performance-to-cost power supply. Package DIP8 Not to Scale S/OCP 1 VCC 2 GND FB/OLP 4 8D 7D 6 5 ST Features.
Current Mode Type Pulse Ratio Control.
Auto Standby Function Normal Operation ------------------------------ PRC Mode Standby ---------------------------- Burst Oscillation Mode.
No Load Power Consumption < 40mW.
Leading Edge Blanking Function.
Auto Bias Function.
Protections Overcurrent Protection (OCP); p.
