2SC4131 Silicon NPN Transistor

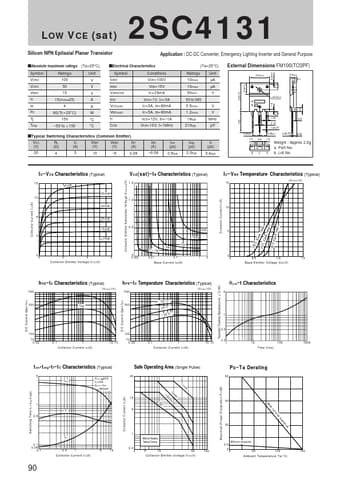

2SC4131 LOW VCE (sat) Silicon NPN Epitaxial Planar Transistor Application : DC-DC Converter, Emergency Lighting Inverter and General Purpose sAbsolute maximum ratings (Ta=25°C) Symbol Ratings Unit VCBO 100 V VCEO VEBO IC IB PC Tj Tstg 50 V 15 V 15(Pulse25) A 4 A 60(Tc=25°C) W 150 °C 55 to +150 °C sElectrical Characteristics Symbol ICBO IEBO V(BR)CEO hFE VCE(sat) VBE(sat) fT COB Conditions VCB=100V VEB=15V IC=25mA VCE=1V, IC=5A IC=5A, IB=80mA IC=5A, IB=80mA VCE.
