2SC4139 Silicon NPN Transistor

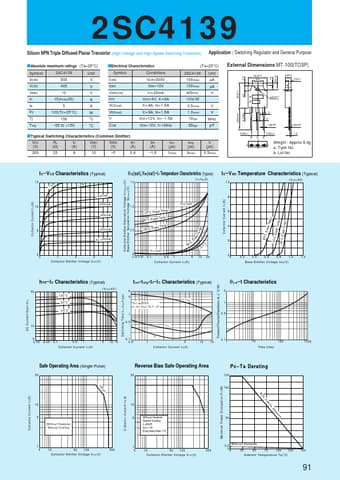

2SC4139 Silicon NPN Triple Diffused Planar Transistor (High Voltage and High Speed Switchihg Transistor) sAbsolute maximum ratings (Ta=25°C) Symbol VCBO VCEO VEBO IC IB PC Tj Tstg 2SC4139 500 400 10 15(Pulse30) 5 120(Tc=25°C) 150 55 to +150 Unit V V V A A W °C °C Application : Switching Regulator and General Purpose External Dimensions MT-100(TO3P) 5.0±0.2 15.6±0.4 9.6 2.0 1.8 4.8±0.2 2.0±0.1 sElectrical Characteristics Symbol ICBO IEBO V(BR)CEO hFE VCE(sat) VBE(sat) fT COB Conditions.

2SC4139 Datasheet (25.55 KB)
