2SK1190 MOSFET

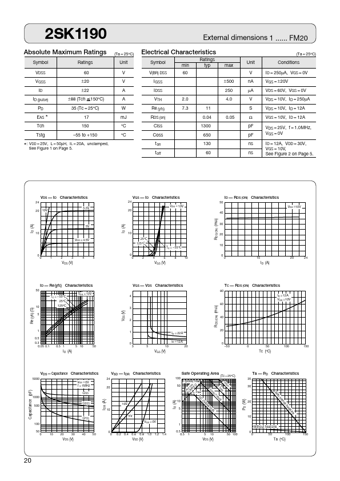

2SK1190 Absolute Maximum Ratings Symbol VDSS VGSS ID ID (pulse) PD EAS Tch Tstg Ratings 60 ± 20 ± 22 ± 88 (Tch 150ºC) (Ta = 25ºC) External dimensions 1 FM20 Electrical Characteristics Symbol V(BR) DSS I GSS I DSS VTH Re (yfs) RDS (on) Ciss Coss t on t off 2.0 7.3 11 0.04 1300 650 130 60 0.05 min 60 ± 500 250 4.0 Ratings typ max Unit V nA µA V S Ω pF pF ns ns (Ta = 25ºC) Unit V V A A W mJ ºC ºC Conditions I D = 250µA, VGS = 0V VGS = ± 20V VDS = 60V, VGS = 0V VDS = 10V, I D = 250µA VDS = 10V, .
