SAP09N BUILT-IN TEMPERATURE COMPENSATION DIODES / BUILT-IN EMITTER RESISTOR DARLINGTON

www.DataSheet4U.com SAP09N (Complement to type SAP09P) Equivalent circuit B C D R: 70Ω Typ. E S Emitter resistor RE: 0.22Ω Typ. Application: Audio sElectrical Characteristics Symbol ICBO IEBO VCEO hFE V VCE (sat) VBE (sat) VBE Di VF RE Conditions VCB =150V VEB = 5V IC =30mA VCE =4V, IC =6A IC =6A, IB =6mA IC =6A, IB =6mA VCE =20V, IC =40mA IF =2.5mA IE =1A 0.176 1220 705 0.22 0.264 150 5000 20000 2.0 2.5 V V mV mV Ω 2.54±0.1 3.81±0.1 (7.62) (12.7) 17.8±0.3 4±0.1 sAbsolute maximum ratings.

SAP09N_Sankenelectric.pdf

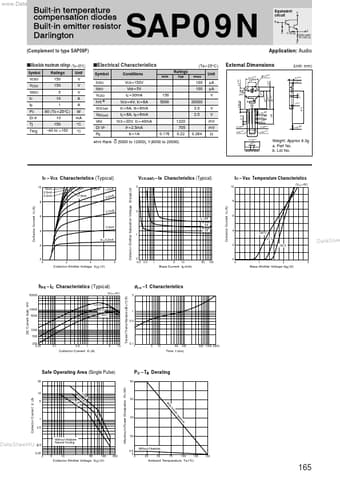

SAP09N Datasheet Preview — Preview of SAP09N PDF

Datasheet Details

Part number:

SAP09N

Manufacturer:

Sanken ↗ electric

File Size:

95.66 KB

Description:

Built-in temperature compensation diodes / built-in emitter resistor darlington.
