SEC1001 3x1.5 Surface Mount LED

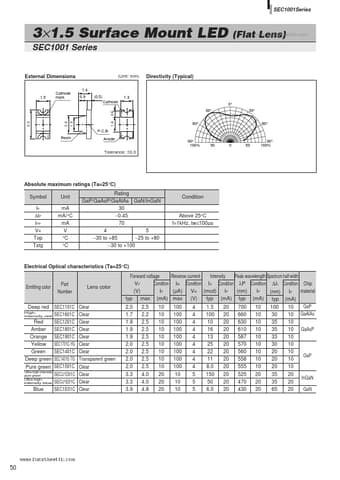

SEC1001Series 3×1.5 Surface Mount LED SEC1001 Series External Dimensions Cathode mark 1.4 0.9 (0.5) Cathode 0.6 (Flatwww.DataSheet4U.com Lens) (Unit: mm) Directivity (Typical) 1.5 1.3 0° 30° 60° 30° 60° 3.0 2.0 1.5 P.C.B. Resin Anode 1.6 90° 100% 50 0 50 90° 100% Tolerance: ±0.3 Absolute maximum ratings (Ta=25°C) Symbol IF ∆IF IFP VR Top Tstg Unit mA mA/°C mA V °C °C Rating GaP/GaAsP/GaAlAs GaN/InGaN 30 0.45 70 4 5 30 to +85 25 to +80 30 to .
