SEC1003 3x1.5 Surface Mount LED

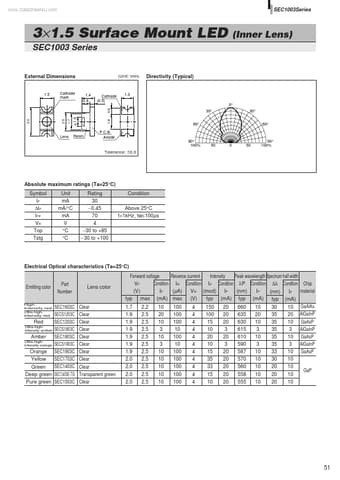

www.DataSheet4U.com SEC1003Series 3×1.5 Surface Mount LED SEC1003 Series External Dimensions Cathode mark (Inner Lens) (Unit: mm) Directivity (Typical) 1.5 1.4 0.9 Cathode (0.5) 0.6 1.3 0° 30° 60° 30° 60° ø1.0 3.0 2.0 1.7 Lens Resin P.C.B. Anode 1.6 90° 100% 50 0 50 90° 100% Tolerance: ±0.3 Absolute maximum ratings (Ta=25°C) Symbol IF ∆IF IFP VR Top Tstg Unit mA mA/°C mA V °C °C Rating 30 0.45 70 4 30 to +85 30 to +100 Condition Above 25°C f=1kH.
