SI-8050S - DC/DC Converter

Product Overview

Sanken electric

📥 Download Datasheet

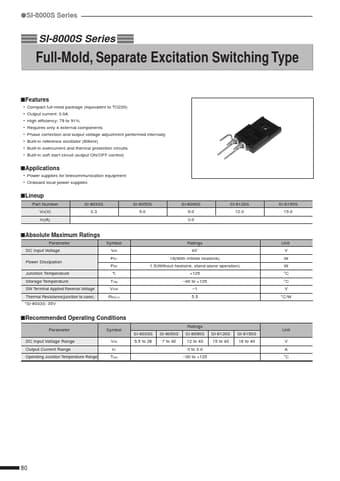

SI-8050S DC/DC Converter by Sanken electric - Datasheet Preview — Datasheet preview – SI-8050S

Datasheet Details

Part number	SI-8050S
Manufacturer	Sanken electric
File Size	63.76 KB
Description	DC/DC Converter
Datasheet	SI-8050S Datasheet
Note	This datasheet PDF includes multiple part numbers: SI-8050S, SI8-050. Please refer to the document for exact specifications by model.
Additional preview pages of the SI-8050S datasheet.

Product details

Features

Compact full-mold package (equivalent to TO220) Output current: 3.0A High efficiency: 79 to 91% Requires only 4 external components Phase correction and output voltage adjustment performed internally Built-in reference oscillator (60kHz) Built-in overcurrent and thermal protection circuits Built-in soft start circuit (output ON/OFF control) s.
