SI-8050SD, SI-8000SD, 3A Buck Converter

3 A, Buck Converter IC SI-8000SD Series Data Sheet .
SI-8000SD series are buck converter ICs whose maximum output current is 3 A.

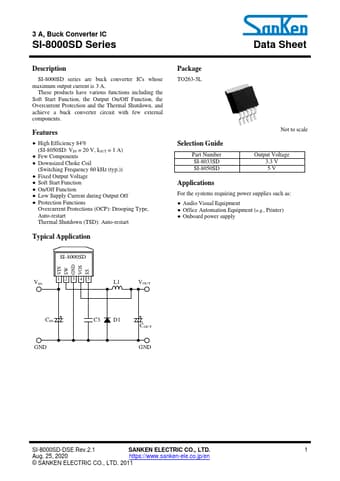

datasheet Preview Page 1 from Datasheet4u.com

SI-8000SD_Sanken.pdf

SI-8050SD Datasheet Preview — This datasheet PDF includes multiple part numbers: SI-8050SD, SI-8000SD. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SI-8050SD, SI-8000SD

Manufacturer:

Sanken ↗

File Size:

1.08 MB

Description:

3A Buck Converter

Note:

This datasheet PDF includes multiple part numbers: SI-8050SD, SI-8000SD.
Please refer to the document for exact specifications by model.

Features

* High Efficiency 84% (SI-8050SD: VIN = 20 V, IOUT = 1 A)
* Few Components
* Downsized Choke Coil (Switching Frequency 60 kHz (typ. ))
* Fixed Output Voltage
* Soft Start Function
* On/Off Function
* Low Supply Current during Output Off
* Protection Functions Overcurre

Applications

* For the systems requiring power supplies such as:
* Audio Visual Equipment
* Office Automation Equipment (e. g. , Printer)
* Onboard power supply SI-8000SD VIN SW GND VOS SS VIN 12345 L1 VOUT CIN GND C3 D1 COUT GND SI-8000SD-DSE Rev.2.1 SANKEN ELECTRIC CO. , LTD. 1 Aug. 25, 202
