SI-8000TM

DC/DC Step-Down Converter

SI-8000TM Features

* 1.5A output current by compact power surface mount package.

* High Efficiency 81% (at VIN=15V, Io=0.5A,Vo=5V)

* Requires only four discrete components. (C3: required for soft start.)

* Built-in Oscillation circuit (oscillation frequency : 300kHz (TYP))

* Constant current type over

SI-8000TM General Description

SI-8000TM series has 300kHz oscillation frequency, so it contributes miniaturization of a chalk coil. Therefore, it realizes a compact and high efficient power supply together with TO 252-5 package (compatible:SC-63) . SI-8000TM series has the function required for switching regulators and protecti.

SI-8000TM Datasheet (521.55 KB)

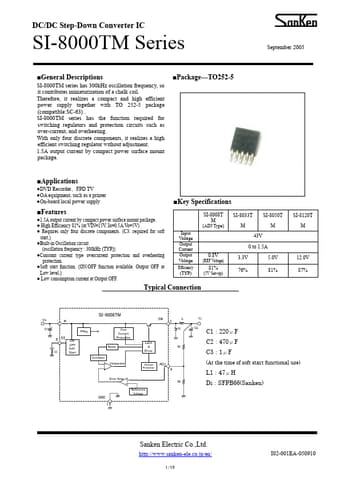

Preview of SI-8000TM PDF

Datasheet Details

Part number:

SI-8000TM

Manufacturer:

Sanken ↗

File Size:

521.55 KB

Description:

Dc/dc step-down converter.
