SI-8000SD - 3A Buck Converter

SI-8000SD Description

3 A, Buck Converter IC SI-8000SD Series Data Sheet .
SI-8000SD series are buck converter ICs whose maximum output current is 3 A.

SI-8000SD Features

* High Efficiency 84% (SI-8050SD: VIN = 20 V, IOUT = 1 A)
* Few Components
* Downsized Choke Coil (Switching Frequency 60 kHz (typ. ))
* Fixed Output Voltage
* Soft Start Function
* On/Off Function
* Low Supply Current during Output Off
* Protection Functions Overcurre

SI-8000SD Applications

* For the systems requiring power supplies such as:
* Audio Visual Equipment
* Office Automation Equipment (e. g. , Printer)
* Onboard power supply SI-8000SD VIN SW GND VOS SS VIN 12345 L1 VOUT CIN GND C3 D1 COUT GND SI-8000SD-DSE Rev.2.1 SANKEN ELECTRIC CO. , LTD. 1 Aug. 25, 202

📥 Download Datasheet

Preview of SI-8000SD PDF

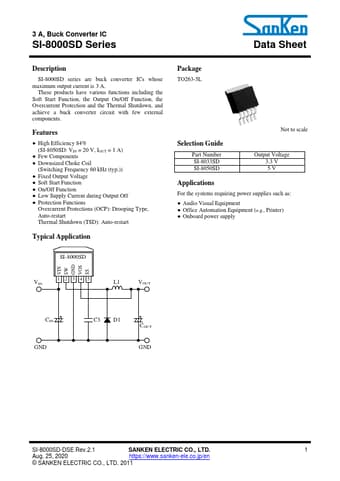

datasheet Preview Page 2 datasheet Preview Page 3
