SI-8000FD - Separate Excitation Step-down Switching Mode

Product Overview

📥 Download Datasheet

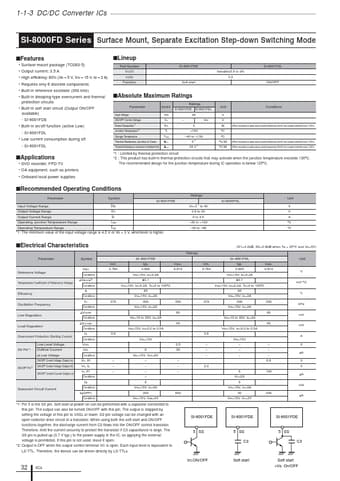

SI-8000FD Separate Excitation Step-down Switching Mode by ETC - Datasheet Preview — Datasheet preview – SI-8000FD

Datasheet Details

Part number	SI-8000FD
Manufacturer	ETC
File Size	63.98 KB
Description	Separate Excitation Step-down Switching Mode
Datasheet	SI-8000FD Datasheet
Additional preview pages of the SI-8000FD datasheet.

Product details

Features

Surface-mount package (TO263-5).
Output current: 3.5 A.
High efficiency: 83% (Vo = 5 V, VIN = 15 V, Io = 2 A).
Requires only 6 discrete components.
Built-in reference oscillator (300 kHz).
Built-in drooping-type overcurrent and thermal protection circuits.
Built-in soft start circuit (Output ON/OFF available) - SI-8001FDE.
Built-in on/off function (active Low) - SI-8001FDL.
Low current consumption during off - SI-.
