SMA5103 - N-channel + P-channel H-bridge

Sanken electric

Datasheet Details

Part number	SMA5103
Manufacturer	Sanken electric
File Size	29.99 KB
Description	N-channel + P-channel H-bridge
Datasheet	SMA5103 Datasheet
Additional preview pages of the SMA5103 datasheet.

📁 Similar Datasheet

SMA5101 - RF Double Balanced Mixer IC (Sanyo Semicon Device)
SMA5101 - MMIC (ON Semiconductor)
SMA51 - TRANSIENT VOLTAGE SUPPRESSORS (LITE-ON)
SMA51 - SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR (MIC)
SMA5118 - N-channel 3-phase DC motor 200V AC direct drive (Sanken)
SMA511LA - LED Display (American Opto Plus LED)
SMA511LB - LED Display (American Opto Plus LED)
SMA511LE - LED Display (American Opto Plus LED)
SMA511LR - LED Display (American Opto Plus LED)
SMA511PG - LED Display (American Opto Plus LED)

Other Datasheets by Sanken electric

SMA5101 - N-channel General purpose
SMA5102 - N-channel With built-in flywheel diode
SMA5104 - N-channel + P-channel 3-phase motor drive
SMA5105 - N-channel With built-in flywheel diode
SMA5106 - N-channel Arrays
SMA5112 - N-channel 3-phase DC motor 100V AC direct drive
SMA5113 - MOS FET Array
SMA5114 - N-channel With built-in flywheel diode

Full PDF Text Transcription

Click to expand full text

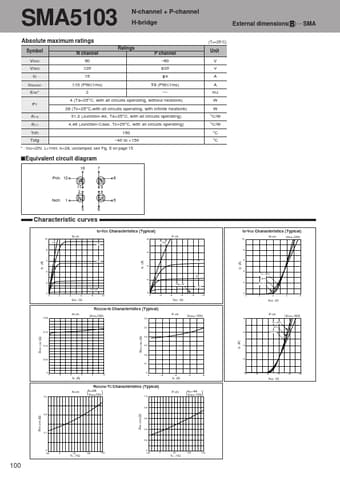

SMA5103 Absolute maximum ratings Symbol VDSS VGSS ID ID(pulse) EAS* PT N channel 60 ±20 ±5 ±10 (PW≤1ms) 2 N-channel + P-channel H-bridge (Ta=25°C) External dimensions B ••• SMA Ratings P channel –60 20 4 8 (PW≤1ms) — Unit V V A A mJ W W °C/W °C/W °C °C 4 (Ta=25°C, with all circuits operating, without heatsink) 28 (Tc=25°C,with all circuits operating, with infinite heatsink) 31.2 (Junction-Air, Ta=25°C, with all circuits operating) 4.46 (Junction-Case, Tc=25°C, with all circuits operating) 150 –40 to +150 θ j–a θ j–c Tch Tstg * : VDD=20V, L=1mH, ID=2A, unclamped, see Fig. E on page 15.

Published: Apr 7, 2005 |
