STR-W6750 - Off-Line Quasi-Resonant Switching Regulators

Product Overview

Sanken electric

Datasheet Details

Part number	STR-W6750
Manufacturer	Sanken electric
File Size	366.99 KB
Description	Off-Line Quasi-Resonant Switching Regulators
Datasheet	STR-W6750 Datasheet

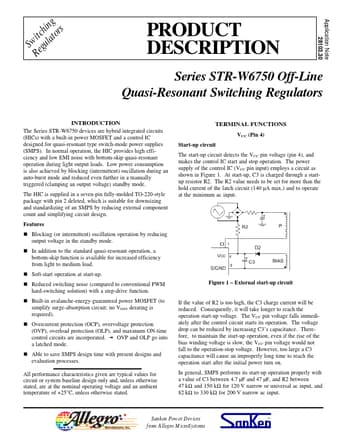

Additional preview pages of the STR-W6750 datasheet.

Product details

Description

Series Power IC for Quasi-Resonant Type Switching Power Supply with High Efficiency and Low Noise in Full Load Range The STR-W6700 series products are power ICs for quasi-resonant type switching power supplies, incorporating a power MOSFET and a controller IC, The product achieves high www.DataSheet4U.net efficiency and low noise power supply systems by the quasi-resonant operation and the bottom-skip quasi-resonant operation.The STR-X6700 series products are the different package (TO-3PF) v

Features

s Multi-Mode Control The operation mode switching with three steps according to load conditions achieves the TO-220F-6 optimal high efficiency and low noise power supply systems across the full load range. (The confirmation of product number is necessary because some functions are different in each product. ) In Standby (Under Standby Load Conditions): －UVLO Intermittent Oscillation by lowering output voltage --- Switched by Standby Signal, or －Auto Burst-Oscillation --- Switched Automatically Un.
