STR7000 Separate Excitation Switching

www.DataSheet4U.com qSTR7000+SI-8020 Series STR7000+SI-8020 Series Separate Excitation Switching Type s.

STR7000_Sankenelectric.pdf

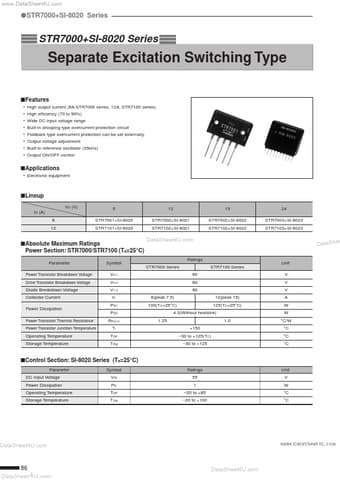

STR7000 Datasheet Preview — Preview of STR7000 PDF

Datasheet Details

Part number:

STR7000

Manufacturer:

Sanken ↗ electric

File Size:

240.88 KB

Description:

Separate Excitation Switching

Features

* High output current (6A:STR7000 series, 12A: STR7100 series) High efficiency (70 to 90%) Wide DC input voltage range Built-in drooping type overcurrent protection circuit Foldback type overcurrent protection can be set e

Applications

* Electronic equipment sLineup VO (V) IO (A) 6 12 5 STR7001+SI-8020 STR7101+SI-8020 12 STR7002+SI-8021 STR7102+SI-8021 15 STR7002+SI-8022 STR7102+SI-8022 24 STR7003+SI-8023 STR7103+SI-8023 sAbsolute Maximum Ratings Power Section: STR7000/STR7100 (Ta=25°C) Parameter Power Transistor Breakdo
