A1746 2SA1746

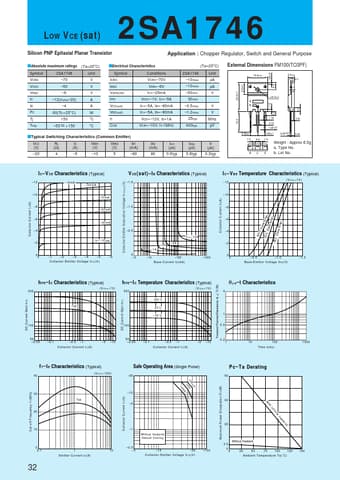

2SA1746LOW VCE (sat) Silicon PNP Epitaxial Planar Transistor Application : Chopper Regulator, Switch and General Purpose sAbsolute maximum ratings (Ta=25°C) Symbol 2SA1746 Unit VCBO 70 V VCEO 50 V VEBO 6 V IC 12(Pulse 20) A IB 4 A PC 60(Tc=25°C) W Tj 150 °C Tstg 55 to +150 °C sElectrical Characteristics Symbol Conditions ICBO VCB= 70V IEBO V(BR)CEO VEB= 6V IC= 25mA hFE VCE= 1.
