CTNS-4603S, Fast Recovery and High Power Diode

VRM = 300 V, IF(AV) = 60 A, trr = 100 ns(max.) Low VF and High Power Diode CTNS-4603S .

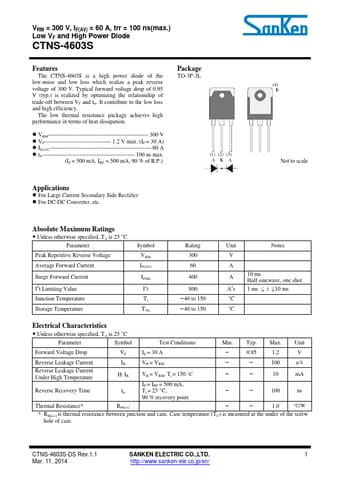

datasheet Preview Page 1 from Datasheet4u.com

CTNS-4603S-Sanken.pdf

CTNS-4603S Datasheet Preview — Preview of CTNS-4603S PDF

Datasheet Details

Part number:

CTNS-4603S

Manufacturer:

Sanken ↗

File Size:

492.59 KB

Description:

Fast Recovery and High Power Diode

Features

* The CTNS-4603S is a high power diode of the low-noise and low loss which realize a peak reverse voltage of 300 V. Typical forward voltage drop of 0.95 V (typ. ) is realized by optimizing the relationship of trade-off between VF and trr. It contribute to the low loss and high efficiency. The low therm

Applications

* For Large Current Secondary Side Rectifier
* For DC-DC Converter, etc. Absolute Maximum Ratings
* Unless otherwise specified, TA is
