CTNS-6306S Fast Recovery Diode

CTNS-6306S Description

VRM = 600 V, IF(AV) = 30 A, trr = 100 ns Fast Recovery Diode CTNS-6306S Data Sheet .
The CTNS-6306S is a fast recovery diode of 600 V, 30 A.

CTNS-6306S Features

* Bare Lead Frame: Pb-free (RoHS Compliant)
* VRM
* 600 V

CTNS-6306S Applications

* PFC Circuit
* Inverter Circuit Package TO247-3L (1) (4) (1) (2) (3) (2)(4) (3) (1) Anode (2) Cathode (3) Anode (4) Cathode Not to scale CTNS-6306S-DSE Rev.1.1 SANKEN ELECTRIC CO. , LTD. 1 Jul. 05, 2022 https://www. sanken-ele. co. jp/en © SANKEN ELECTRIC CO. , LTD. 2022 CTNS-6306S

📥 Download Datasheet

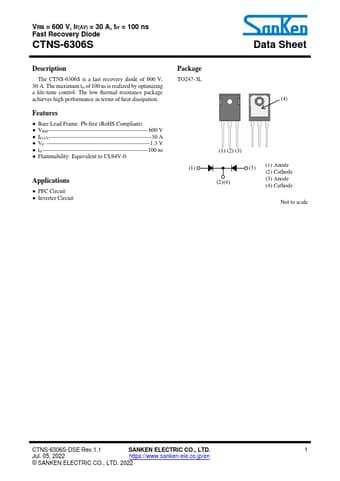

Preview of CTNS-6306S PDF
datasheet Preview Page 2 datasheet Preview Page 3
