SEL1921D
49.28kb
Square display leds.
TAGS
📁 Related Datasheet
SEL1920D - Square display LEDs
(Sanken)
Square display LEDs
sSEL1020 series

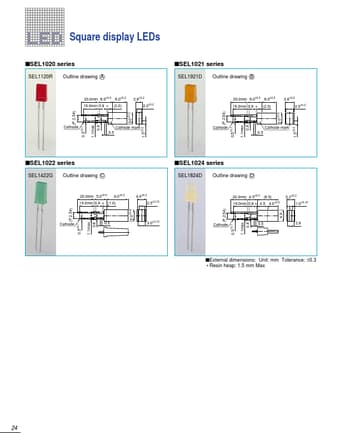

SEL1120R Outline drawing A
sSEL1021 series
SEL1921D Outline drawing B
20.0min 6.0±0.5 6.0±0.2 19.0min 0.8
(P.2.5.
SEL1922D - Square display LEDs
(Sanken)
Square display LEDs
sSEL1020 series
SEL1120R Outline drawing A
sSEL1021 series
SEL1921D Outline drawing B
20.0min 6.0±0.5 6.0±0.2 19.0min 0.8
(P.2.5.
SEL1924D - Square display LEDs
(Sanken)
Square display LEDs
sSEL1020 series
SEL1120R Outline drawing A
sSEL1021 series
SEL1921D Outline drawing B
20.0min 6.0±0.5 6.0±0.2 19.0min 0.8
(P.2.5.
SEL1910A - 5 round-type standard LEDs
(Sanken)
5ø round-type standard LEDs
sSEL1010 series
Outline drawing A
ø5.6±0.2
20.0min 5.0±0.5 19.0min 0.8
Cathode
7.6±0.2 (1.0)
±0.2
(P.2.54)
0.5
0.5
.
SEL1910D - 5 round-type standard LEDs
(Sanken)
5ø round-type standard LEDs
sSEL1010 series
Outline drawing A
ø5.6±0.2
20.0min 5.0±0.5 19.0min 0.8
Cathode
7.6±0.2 (1.0)
±0.2
(P.2.54)
0.5
0.5
.
SEL1911D - Round-type special configuration LEDs
(Sanken)
Round-type special configuration LEDs
sSEL1011 series
SEL1111R Outline drawing A
sSEL2011 series
SEL2111W Outline drawing B
19.0min 0.8
Cathode
(1..
SEL1911D - (SEL1xx1x) Cylindrical LED
(Sanken)
SEL1011 Series
5φ Cylindrical LED
SEL1011 Series
External Dimensions
(Unit: mm)
ø5.6±0.2
20.0min 5.0±0.5 19.0min 0.8
Cathode
7.9±0.2 (1.0)
ø5.0±0..
SEL1913K - LED
(Sanken)
LEDs for surface illumination
sSEL1013 series
Outline drawing A
ø5.6±0.2
20.0min 5.0±0.5 Cathode 19.0min 0.8 (P.2.54)
5.8±0.2 (1.0)
ø4.9±0.2
0.5±0.
SEL1950KM - LED
(Sanken)
5ø round-type contact mount LEDs (for automatic insertion)
sSEL1050 series (narrow viewing angle)
Outline drawing A
Anode 0.5±0.1
Resin burr 0.3max
.
SEL1010 - 5 round-type standard LEDs
(Sanken)
5ø round-type standard LEDs
sSEL1010 series
Outline drawing A
ø5.6±0.2
20.0min 5.0±0.5 19.0min 0.8
Cathode
7.6±0.2 (1.0)
±0.2
(P.2.54)
0.5
0.5
.
