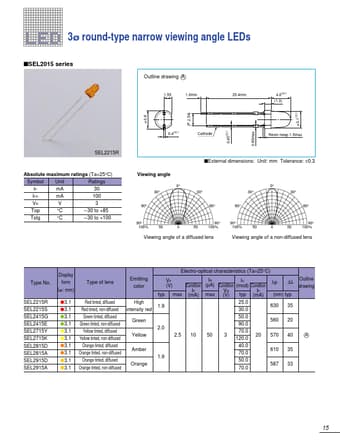

3ø round-type narrow viewing angle LEDs sSEL2015 series Outline drawing A 1.55 1.0min 25.4min 4.0±0.1 (1.3) (P.2.54) 0.45±0.1 0.4±0.1 Cathode 0.65max Resin heap 1.5max SEL2215R sExternal dimensions: Unit: mm Tolerance: ±0.3 Absolute maximum ratings (Ta=25°C) Symbol Unit Ratings IF mA 30 IFP mA 100 VR V 3 Top °C 30 to +85 Tstg °C 30 to +100 Viewing angle 0° 30° 60° 30° 60° 60° 30° 0° 30° 60° 90° 100% 50 0 50 90° 100% 90° 100% ø3.1±0.1 ø3.8 50 0 50 90° 100%
