SFA0001, SFA0001-VF-RP - Switching Power-Supply

SFA0001 Description

SANKEN ELECTRIC CO., LTD.１ Scope The present specifications shall apply to switching power supply IC SFA0001-VF-RP ２ Outline Type Structure Semicon.

SFA0001 Features

* Build-in current limit protection, thermal shutdown protection. Built-in error-amp helps eliminate components at sensing stage such as shunt regulator. ３ Absolute maximum ratings ３－１ Absolute maximum ratings（Ta=25℃） Parameter Symbol Ratings Unit OCP terminal voltage VOCP -6～+6 V SS termin

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SFA0001, SFA0001-VF-RP. Please refer to the document for exact specifications by model.

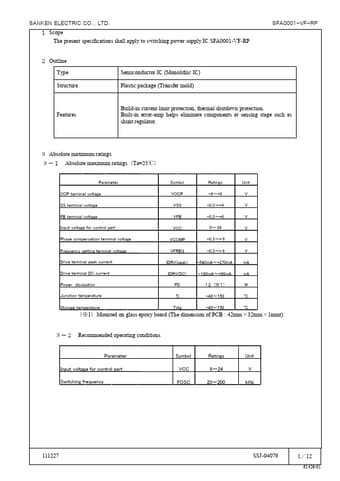

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SFA0001, SFA0001-VF-RP
Manufacturer
Sanken ↗
File Size
1.02 MB
Datasheet
SFA0001-VF-RP-Sanken.pdf
Description
Switching Power-Supply
Note
This datasheet PDF includes multiple part numbers: SFA0001, SFA0001-VF-RP.
Please refer to the document for exact specifications by model.
