SFA0006A - Primary-side Regulation Off-line PWM Controller

SFA0006A Description

Primary-side Regulation Off-line PWM Controller SFA0006A Data Sheet .
Package SFA0006A is the current mode PWM control IC with SOP8 a primary-side regulation suitable for the automotive system controllers.

SFA0006A Features

* es
* AEC-Q100 Qualified
* Bare Lead Frame: Pb-free (RoHS Compliant) D
* Primary-side Regulation Optocoupler is Unnecessary w Output Voltage is Set by External Resistor and e Transformer Winding Ratio N
* Current Mode PWM Control
* Constant Voltage (CV) and Constant Current (CC) r

SFA0006A Applications

* For following automotive switching power supply circuits connected to 12 V or 24 V battery:
* Auxiliary Power Supply
* Buck Converter Circuit T1 D51 VOUT1 (+) D1 C1 C2 R9 C7 R8 P S1 C51 R51 C6 D3 () U1 NC R1 REF VCC R7 C3 R2 1 8 COMP FB R5 Q1 R10 2 7 C4 GND DRV

📥 Download Datasheet

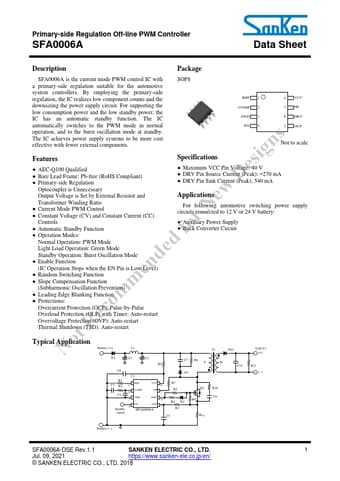

Preview of SFA0006A PDF
