SIM6822M, SIM6800M Datasheet - Sanken

SIM6822M High Voltage 3-Phase Motor Driver

Package The SIM6800M/MV series are high voltage 3-phase DIP40 motor drivers in which transistors, a pre-drive circuit, and Mold Dimensions: 36.0 mm × 14.8 mm × 4.0 mm bootstrap circuits (diodes and resistors) are highly integrated. 40 These products can run on a 3-shunt current detection sy.

SIM6822M Features

* Built-in Bootstrap Diodes with Current Limiting Resistors (60 Ω)

* CMOS-compatible Input (3.3 V or 5 V)

* Pb-free (RoHS Compliant)

* Isolation Voltage: 1500 V (for 1 min) 21 20 1 igns Leadform 2971 Des Not to scale UL-recognized Component (File No.: E118037) (SIM6880M UL Recogn

SIM6800M-Sanken.pdf

This datasheet PDF includes multiple part numbers: SIM6822M, SIM6800M. Please refer to the document for exact specifications by model.

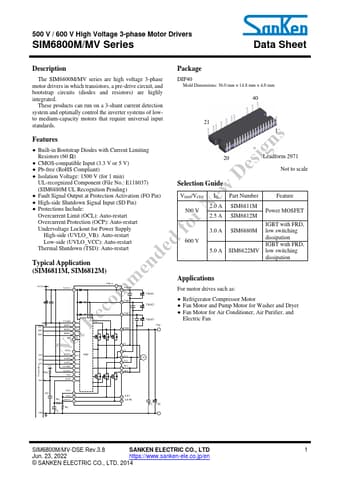

SIM6822M Datasheet Preview Page 2 SIM6822M Datasheet Preview Page 3

Datasheet Details

Part number:

SIM6822M, SIM6800M

Manufacturer:

Sanken ↗

File Size:

1.54 MB

Description:

High voltage 3-phase motor driver.

Note:

This datasheet PDF includes multiple part numbers: SIM6822M, SIM6800M.
Please refer to the document for exact specifications by model.
