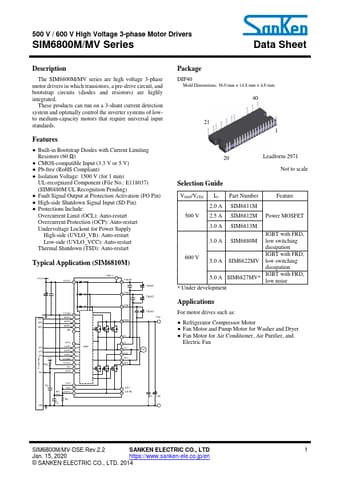

SIM6827MV Datasheet Preview Page 2 SIM6827MV Datasheet Preview Page 3

Datasheet Details

Part number:

SIM6827MV, SIM6800M

Manufacturer:

Sanken ↗

File Size:

1.54 MB

Description:

High voltage 3-phase motor driver.

Note:

This datasheet PDF includes multiple part numbers: SIM6827MV, SIM6800M.
Please refer to the document for exact specifications by model.

SIM6827MV, SIM6800M, High Voltage 3-Phase Motor Driver

The SIM6800M/MV series are high voltage 3-phase motor drivers in which transistors, a pre-drive circuit, and bootstrap circuits (diodes and resistors) are highly integrated.

These products can run on a 3-shunt current detection system and optimally control the inverter systems of lowto medium-capaci

SIM6827MV Features

* Built-in Bootstrap Diodes with Current Limiting Resistors (60 Ω)

* CMOS-compatible Input (3.3 V or 5 V)

* Pb-free (RoHS Compliant)

* Isolation Voltage: 1500 V (for 1 min) UL-recognized Component (File No.: E118037) (SIM6880M UL Recognition Pending)

* Fault Signal Output at Prot
