SMA6822MH

High Voltage 3-phase Motor Driver

Sanken

SMA6822MH Features

* Built-in Bootstrap Diodes with Current Limmiting Resistors (22 Ω)

* CMOS-compatible Input (3.3 or 5 V)

* Fault Signal Output (FO pin)

* 7.5 V Regurator Output

* Bare lead frame: Pb-free (RoHS compliant)

* Protections Undervoltage Lockout for Power Supply High-side (UVLO_VB)

SMA6822MH General Description

SLA/SMA6820MH series are high voltage 3-phase motor driver ICs in which transistors, pre-driver ICs (MICs), and bootstrap circuits (diodes and resistors) are highly integrated. You can select from the fully-molded type or the heatsink-type ZIP24 package according to your mounting condition. SLA/SMA6.

SMA6822MH Datasheet (401.20 KB)

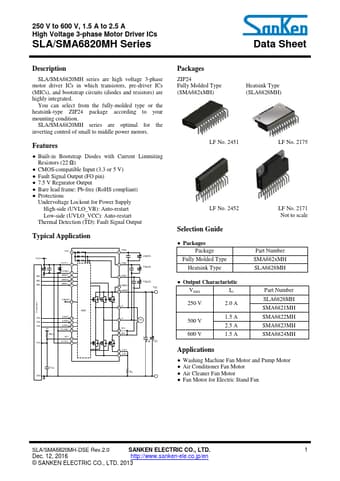

SMA6822MH Datasheet Preview — Preview of SMA6822MH PDF

Datasheet Details

Part number:

SMA6822MH

Manufacturer:

Sanken ↗

File Size:

401.20 KB

Description:

High voltage 3-phase motor driver.
