SMA6823MP High Voltage 3-Phase Motor Driver

SMA6823MP Description

SMA6823MP High Voltage 3-Phase Motor Driver .
The SMA6823MP inverter power module (IPM) device provides a robust, highly-integrated solution for optimally controlling 3-phase motor power inverter.

SMA6823MP Features

* ▪ Built-in pre-drive IC and 3 bootstrap diodes as a high-side drive power supply ▪ CMOS compatible input (5 V) ▪ High-side gate driver using bootstrap circuit or floating power supply ▪ One pin for 7.5 V regulator output ▪ Built-in protection circuit for controlling power supply voltage drop ▪ Built

SMA6823MP Applications

* include residential white goods (home applications) and commercial appliance motor control:
* Air conditioner fan
* Refrigerator compressor
* Dishwasher pump Functional Block Diagram VB 1 VB 2 VB 3 VD VCC1 HIN1 HIN2 HIN3 COM1 UVLO Input Logic UVLO UVLO UVLO High Side

📥 Download Datasheet

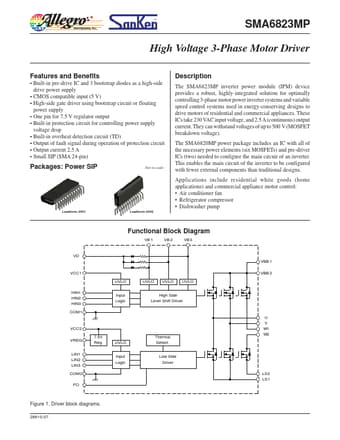

Preview of SMA6823MP PDF
