SSC9512S

Controller

SSC9512S Features

* Soft-Switched Multi-Resonant Zero Current Switch (SMZ) The zero-current switching (ZSC) and zero-voltage switching (ZVS) of half-bridge type resonance achieve the high efficiency and low noise systems. Automatic Dead Time Adjustment Function for Wide Resonant Conditions Burst-Oscillation Function Th

SSC9512S General Description

The SSC9510 series products are controller ICs, incorporating a floating drive circuit for half-bridge type resonance. The product achieves high efficiency and low noise power supply systems by the ZVS and ZCS. The product is recommended for high-efficiency small and standardized power supplies bec.

SSC9512S Datasheet (274.45 KB)

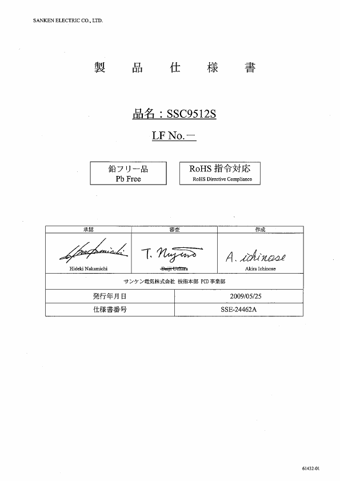

Preview of SSC9512S PDF

Datasheet Details

Part number:

SSC9512S

Manufacturer:

Sanken ↗

File Size:

274.45 KB

Description:

Controller.
SSC9510 Series Controller IC for Current Resonant Type Switching Power Supply with Half-Bridge Resonance, High Efficiency and Low Noise
* Genera.
