STR-E1565 DC-DC Systematic Combo Power IC

STR-E1565 Description

PFC/DC-DC Systematic Combo Power IC STR-E1565 *General .
STR-E1565 is a Hybrid IC power-factor-corrected switching mode power supply (SMPS).

STR-E1565 Features

* Integrated PFC Control Block 1. Critical Conduction Mode for High Efficiency and Low EMI 2.Built-in Multiplier with AC input compensation
* High Efficiency and Low EMI DC/DC Control Block 1. Multi Mode Control (1) Quasi Resonant Operation

STR-E1565 Applications

* LCD-TV
* LCD-Monitor
* Projection-TV
* AC Adapter
* Electrical equipment requiring the measures against higher harmonics.
* Line-up Part Number STR-E1555 STR-E1565 Built-in MOSFET 650V / 0.7Ω 800V / 1.8Ω PFC Part (total) Output Power (Including DC/DC Output Power) DC/DC Part

📥 Download Datasheet

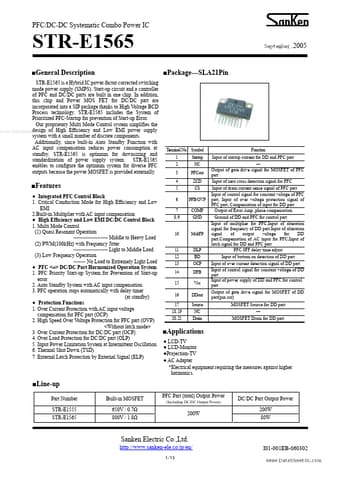

Preview of STR-E1565 PDF
