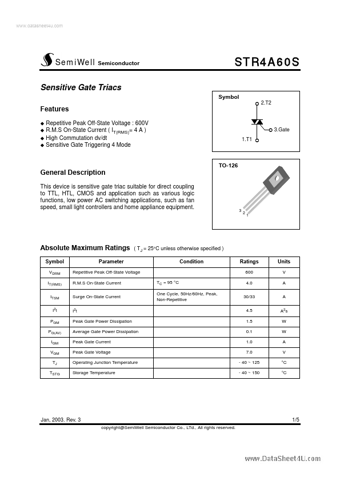

Part number: STR-4A60S
Manufacturer: SemiWell Semiconductor
File Size: 685.38KB
Download: 📄 Datasheet
Description: Sensitive Gate Triacs
* Repetitive Peak Off-State Voltage : 600V
* R.M.S On-State Current ( IT(RMS)= 4 A )
* High Commutation dv/dt
* Sensitive Gate Triggering 4 Mode
General D.
such as fan speed, small light controllers and home appliance equipment.
STR4A60S
Symbol
○ 2.T2
▼▲
○ 3.Gate
1.T1 ○
.
This device is sensitive gate triac suitable for direct coupling to TTL, HTL, CMOS and application such as various logic functions, low power AC switching applications, such as fan speed, small light controllers and home appliance equipment.
STR4A60.
