STR4A60S Sensitive Gate Triacs

SemiWell Semiconductor

Description

www.datasheet4u.com SemiWell Semiconductor Sensitive Gate Triacs STR4A60S Symbol .
This device is sensitive gate triac suitable for direct coupling to TTL, HTL, CMOS and application such as various logic functions, low power AC switc.

📥 Download Datasheet

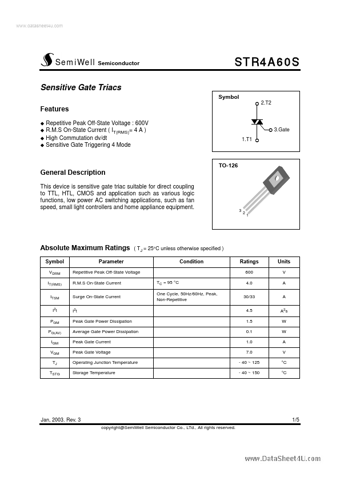

STR4A60S Datasheet Preview — Preview of STR4A60S PDF

Datasheet Specifications

Part number: STR4A60S
Manufacturer: SemiWell Semiconductor
File Size: 685.38 KB
Datasheet: STR4A60S_SemiWellSemiconductor.pdf
Description: Sensitive Gate Triacs

Features

* Repetitive Peak Off-State Voltage : 600V R. M. S On-State Current ( IT(RMS)= 4 A )
* High Commutation dv/dt
* Sensitive Gate Triggering 4 Mode

Applications

* such as fan speed, small light controllers and home appliance equipment. TO-126 3 2 1 Absolute Maximum Ratings Symbol VDRM IT(RMS) ITSM I2 t PGM PG(AV) IGM VGM TJ TSTG ( TJ = 25°C unless otherwise specified ) Condition Ratings 600 TC = 95 °C One Cycle, 50Hz/60Hz, Peak, Non-Repetitive 4.0 30/3
